Ricoh Fujitsu fi-7700 Flatbed Scanner A3-Size - Speed 100ppm - ADF 300 sheets

Display all pictures

Print
View full size

A8-A3 Size ADF/Flatbed Scanner

Optical Resolution 600dpi

Scan Speed Simplex 100ppm

Interface USB 3.1

More details

More info

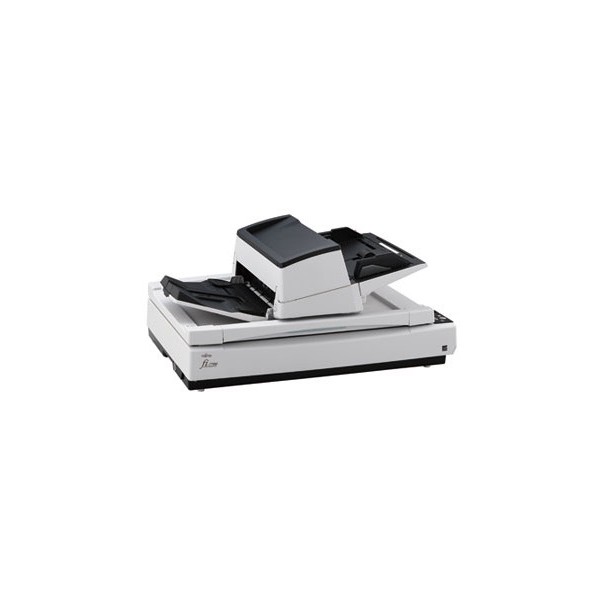

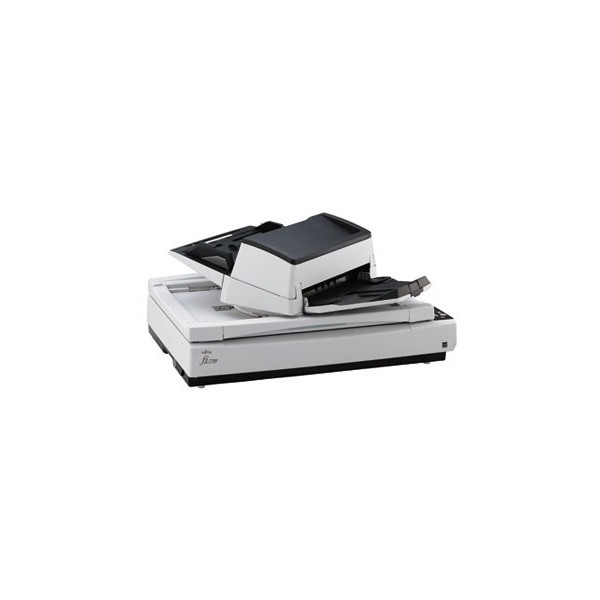

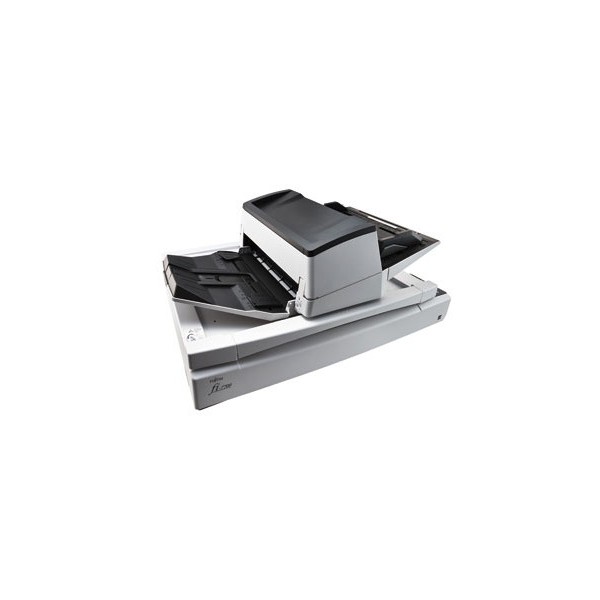

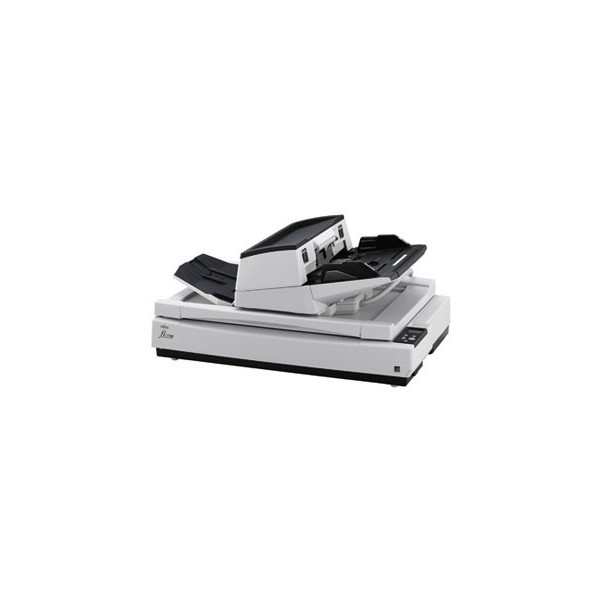

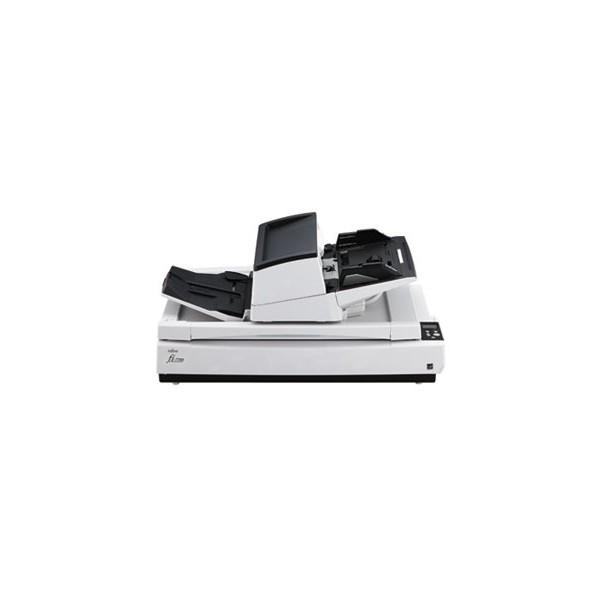

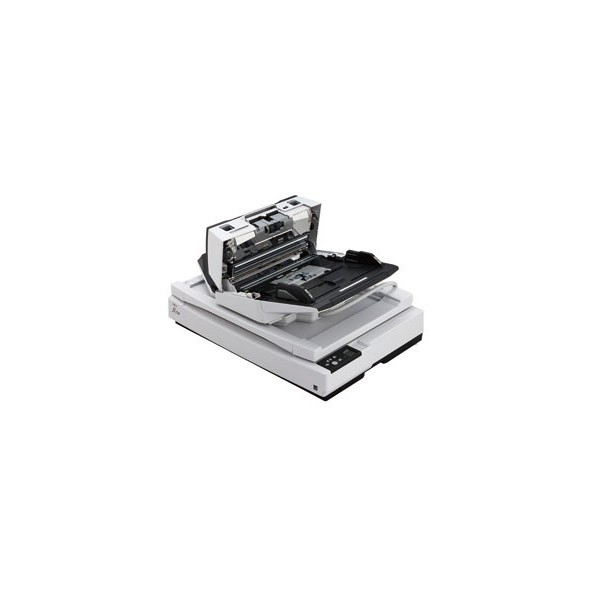

Fujitsu fi-7700 ADF/Flatbed Scanner (A3-Size)

The fi-7700 allows you to scan A4 landscape documents at 100 ppm/200 ipm (200/300 dpi). The scanner is suitable for continuous scanning because it allows you to load up to 300 sheets at a time which improves efficiency when scanning a large volume of documents. In addition, various types of documents, such as thin paper, plastic cards, books, magazines, envelopes, and long page documents can be scanned on this scanner.

Scanning up to 100ppm (Simplex) @ 200/300dpi resolution

and up to 200ipm (Simplex) @ 200/300dpi resolution

ADF : Automatic Document Feeder 300 Sheets

Document Size : A8-A3 Paper Size

Product Specification

Fujitsu fi-7700 ADF/Flatbed Scanner (A3 Size)

Fujitsu Scanner
Scanner Type	ADF (Automatic Document Feeder) / Manual Feed / Flatbed, Duplex
Image Sensor Type	Color CCD x 3 (front x 1, back x 1, Flatbed x 1)
Light Source	White LED Array x 6 (front x 2, back x 2, Flatbed x 2)
Scanning Speed	A4 Landscape (Color/GrayScale/Monochrome) ADF Simplex: 100 ppm (200/300 dpi) Duplex: 200 ipm (200/300 dpi) Flatbed 0.6 Seconds (200/300 dpi) A4 Portrait (Color/GrayScale/Monochrome) ADF Simplex: 80 ppm (200/300 dpi) Duplex: 160 ipm (200/300 dpi) Flatbed 0.9 Seconds (200/300 dpi)
Output Resolution	600dpi (Optical) 50-600dpi (adjustable by 1dpi increments) 1,200 dpi (driver)
Output Format	Color: 24-bit Grayscale: 8-bit Monochrome: 1-bit
ADF : Automatic Document Feeder	300 sheets (A4 80g/m²)
Document Size	ADF : A8 (50.8x69 mm) - A3 (304.8x431.8 mm) Long Page 5,588 mm Flatbed : Maximum (304.8x457.2 mm)
Paper Weight	Paper : 20 to 413 g/m2 Plastic Card : Up to 1.4 mm
Daily Duty Cycle	30,000 sheets
Multifeed Detection	Overlap detection (Ultrasonic sensor), Length detection
Interface	USB 3.1 Gen 1 / USB 3.0 / USB 2.0 / USB 1.1
Dimensions / Weight	706x500x345 mm / 35 kg
Warranty	1 year
